High Accuracy Intelligent Servo Press Machine Can Be Customized

Brand Name : TJ

Model Number : TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T,30% payment in advance,70% before delivery

Supply Ability : 200 pcs per month

Delivery Time : 6~8 weeks

Packaging Details : non wooden box

name : Servo press machine production line customized

machine model : C-type/four-column type/desktop type

control forms : touch screen type/computer type

Color : Client's Request, black and silver

pressure range : 0.1~300KN

max. effective stroke : 500mm

pressing mounting speed : 0~35mm/s

fast forward/return speed : 0~100mm/s

max. dwell time : 3000s

repeatablity : ±0.01

application : Servo motor box with locking screws

Material : steel, gunmetal finish

Contact Now

servo-press, High accuracy intelligent servo press machine,

can be customized according to customer's demand

1. Descriptions

Tongjin servo press: It is suitable for the quick switching production of the whole series of sensor products. The program is reserved and extensible, and more varieties can be added.

2. Specifcations

Electric control device:

1.Electrical appliance control cabinet has illuminating lamp for inspection and

maintenance.Main electrical components adopt famous brands from at home and abroad.

2.Control system includes two kinds of operation modes, manual operation and

semi-automatic single circulation.

3.PLC adopts German Siemens Brand. Touch screen adopts German Siemens or WEINVIEW

brand. Ball screw rod adopts Switzerland imported brand. Servo motor and controller are

Japanese Yaskawa Brand. And other electrical components are all imported brands or

domestic famous brands.

3. Parameters Table

Items/Type		Unit	TJ-SP -01	TJ-SP -05	TJ-SP -10	TJ-SP -20	TJ-SP -30	TJ-SP -50
	Maximum value	KN	1	5	10	20	30	50
	Allowance range	KN	0.1-1	0.5-5	1-10	2-20	3-30	5-50
	Minimum adjustable unit	N	1
	Minimum detection value	0.2% of the maximum pressure
Lead	Maximun value	mm	200	200	200	200	250	350
Lead	Minimum adjustable unit	mm	0.01
Speed	Press mounting	mm/s	0-35
	Fast forward/ return	mm/s	0-100
	Minimum adjustable unit	mm/s	0.01
Dwell time	Maximum vaule	S	3000
Dwell time	Minimum adjustable unit	S	0.1
Repeatability		mm	±0.01 mm
Power		kw	0.4	0.75	1.5	2.2	3.5	5.5
Voltage	Tri-phase	V	380/220

Items/Type		Unit	TJ-SP -70	TJ-SP -100		TJ-SP -150		TJ-SP -200	TJ-SP -250	TJ-SP -300
Pressure range	Maximum value	KN	70	100		150		200	250	300
	Allowance range	KN	7-70	10-100		15-150		20-200	25-250	30-300
	Minimum adjustable unit	N	1
	Minimum detection value	0.2% of the maximum pressure
Lead	Maximun value	mm	350	500		500		500	500	500
	Minimum adjustable unit	mm	0.01
Speed	Press mounting	mm/s	0-35		0-35		0-30	0-25	0-20		0-15
	Fast forward/ return	mm/s	0-100		0-100		0-100	0-50	0-50		0-30
	Minimum adjustable unit	mm/s	0.01
Dwell time	Maximum vaule	S	3000
	Minimum adjustable unit	S	0.1
Repeatability		mm	±0.01 mm
Power		kw	7.5	7.5		7.5		7.5	11	11
Voltage	Tri-phase	V	380/220

★Only for reference.The stroke is optional,specific parameters are subject to the agreement.

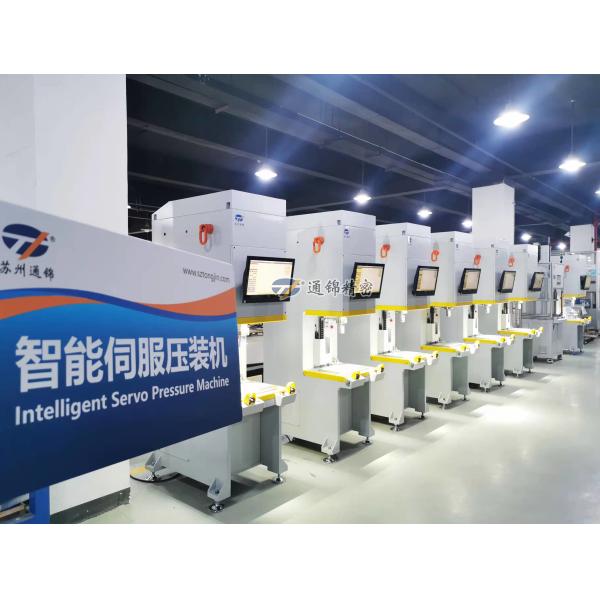

4. More pictures

High Accuracy Intelligent Servo Press Machine Can Be Customized
